Suzhou Fujijia Elevator Co., Ltd. is a Sino-foreign joint venture with 20 years of elevator manufacturing history authorized by Japan in China. The main products include passenger elevators, villa elevators, freight elevators, escalators, etc.

Car Elevator

FJS Car Elevator

Car Elevator

FJS car elevator applies the most advanced system in the world such as:

Comfortable safety pre-warning & energy -saving

Trouble predicting functions includes camera, chip conversation, and display. It fulfills the pre-announcing function.

The car fixer includes a pressure guide panel, fixing level, left/right touch panel, and reset switch. It composes a new style automobile elevator car fixer.

A safety car includes a landing door at a well-leveling position. It is close to the sensor, starter, etc. It fulfills safety purposes.

We can provide customers with two types of traction and hydraulic machines. The car elevator was specially designed to meet the unique requirements of the vehicle size, and the performance is highly flexible and stable.
Many advanced control techniques are used to strengthen the smooth lift travel, such as the precise transmission signal, and the stable & reliable car system. Meanwhile, the noise can be decreased, and the energy consumption can be minimized during the elevator running.

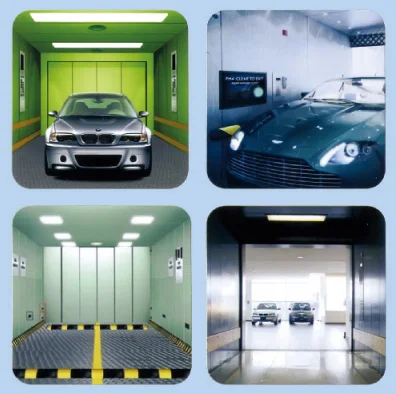

car Elevator
car Elevator
Standard Cabin Design
Ceiling :Pinted steel with LED light
Ventlation : Axial Fan
Car Wall : Painted steel
Car Door : Painted steel
Car bottom : Checkered plate
Fuji Elevator Benefit
Drive Type : Gearless Machine
Rated Spped (max ) : 0.5 m/s
Load :3000 to  5000 kgs
Door Opening : 4 panels center opening/4 panels side opening
Pit Depth : ≥1500 mm
Overhead:≥5000 mm
Motor power : 1-phase 240V/3-phase 240V/415V 50 HZ
Lighting power: 1-phase 240V 50HZ
Drive Type : Hydraulic
Rated Spped (max ) : 0.25 m/s
Load :3200 kgs
Door Opening : 4 panels center opening/4 panels side opening
Pit Depth : ≥1500 mm
Overhead:≥3800 mm
Motor power : 1-phase 240V/3-phase 240V/415V 50 HZ
Lighting power: 1-phase 240V 50HZ
